Automotive Relay Tester and Bypass Jumper Set

FEATURES

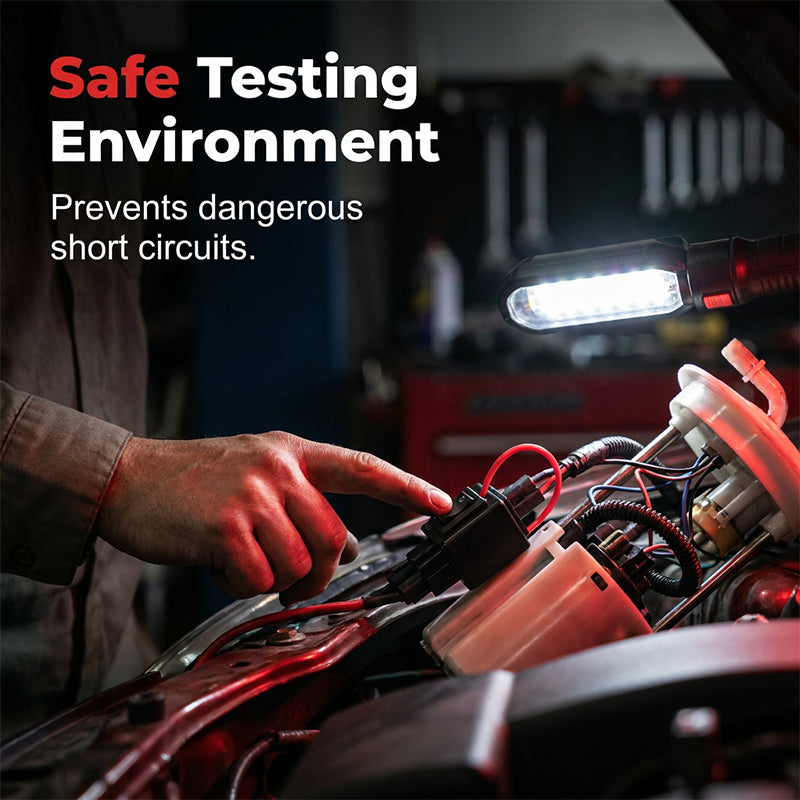

INDEPENDENT CIRCUIT CONTROL - Take charge of the fuel pump circuit, bypassing the vehicle's key-on system. This allows for precise and simplified fuel injection pressure testing without needing to turn the ignition.

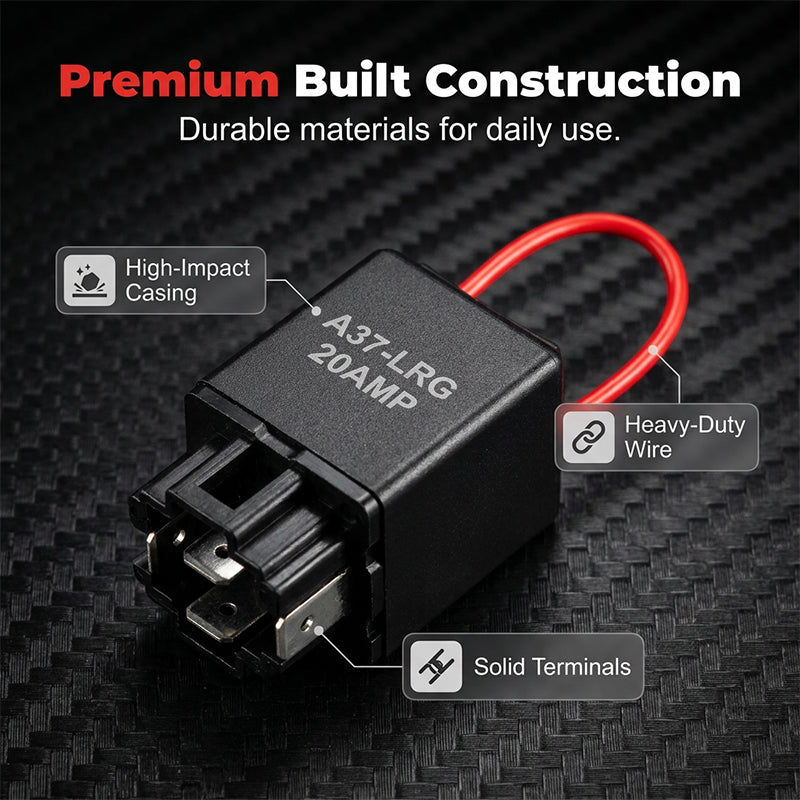

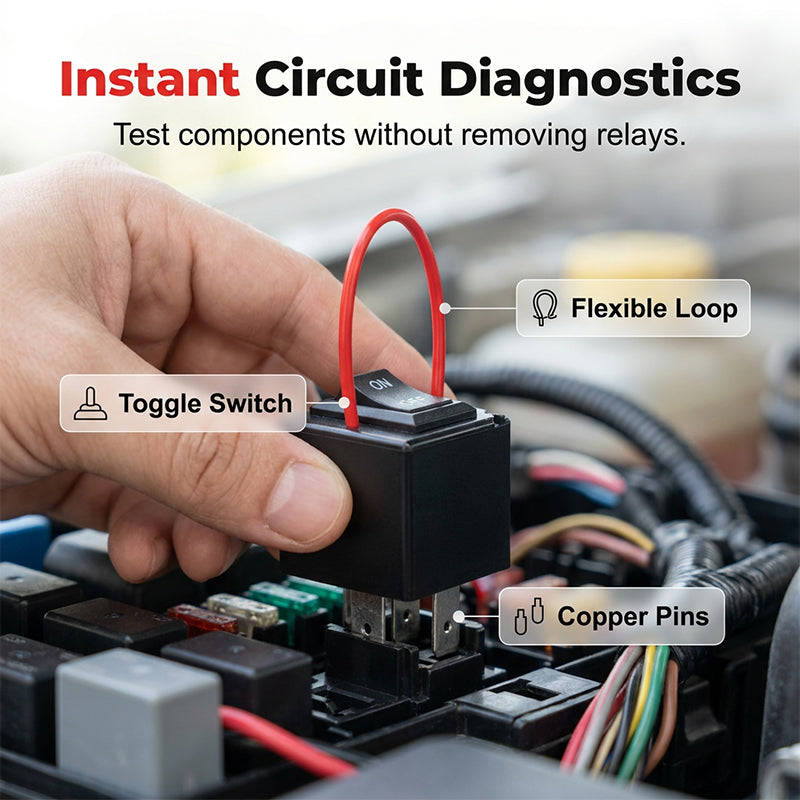

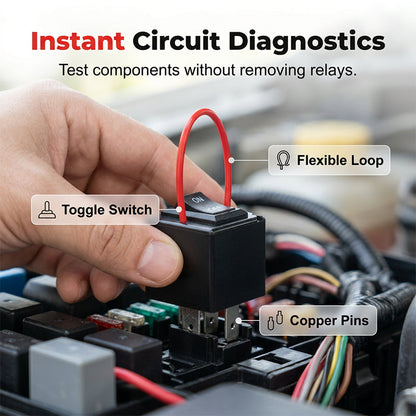

INTEGRATED AMP LOOP - Features a convenient red wire loop designed for easy current monitoring. Simply attach a clamp-on ammeter or lab scope to accurately diagnose parasitic draws or excessive current consumption in the circuit.

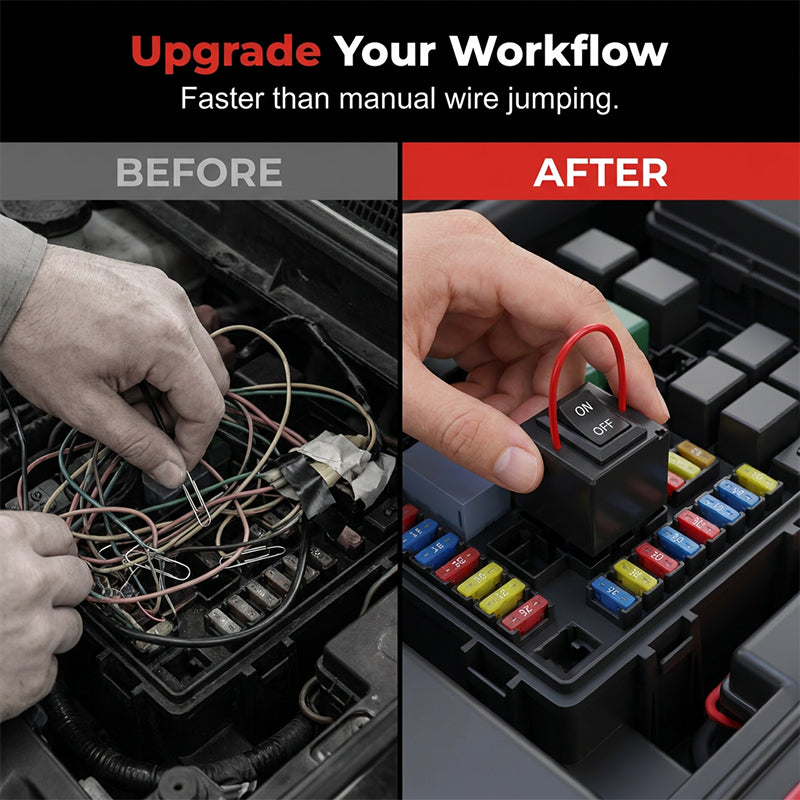

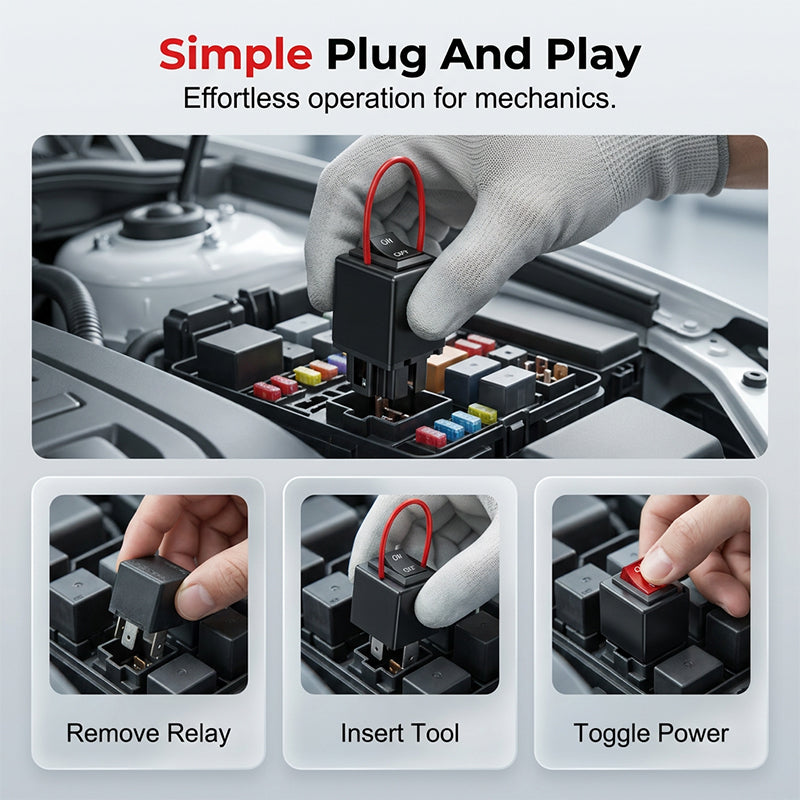

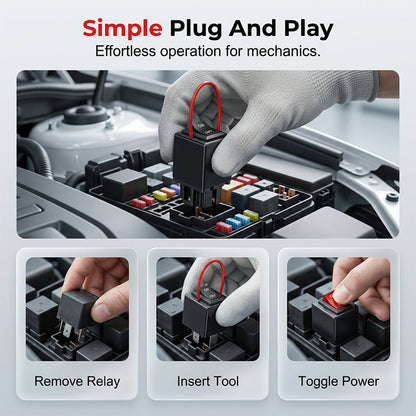

PLUG-AND-PLAY OPERATION - Installation is effortless. Just remove the original relay and plug this bypass switch directly into the socket. You gain immediate manual control over the circuit with a simple flip of the switch.

ROBUST POWER HANDLING - Engineered to handle up to 20 amps of continuous current and a 30-amp surge at 12V. This makes it perfectly suitable for running various automotive DC motors and high-load components safely.

VERSATILE DIAGNOSTIC TOOL - This comprehensive kit is not just for fuel pumps. Use it to test and operate cooling fans, window motors, headlight switches, A/C compressors, and many other relay-controlled automotive systems.

SPEC

Color: Black

Size: 8.99 cm x 6.96 cm x 11.96 cm (3.54 in x 2.74 in x 4.71 in)

Weight: 132 g (4.66 oz)

Working Range: Up to 20A continuous, 30A surge (12V)

PACKAGE INCLUDES

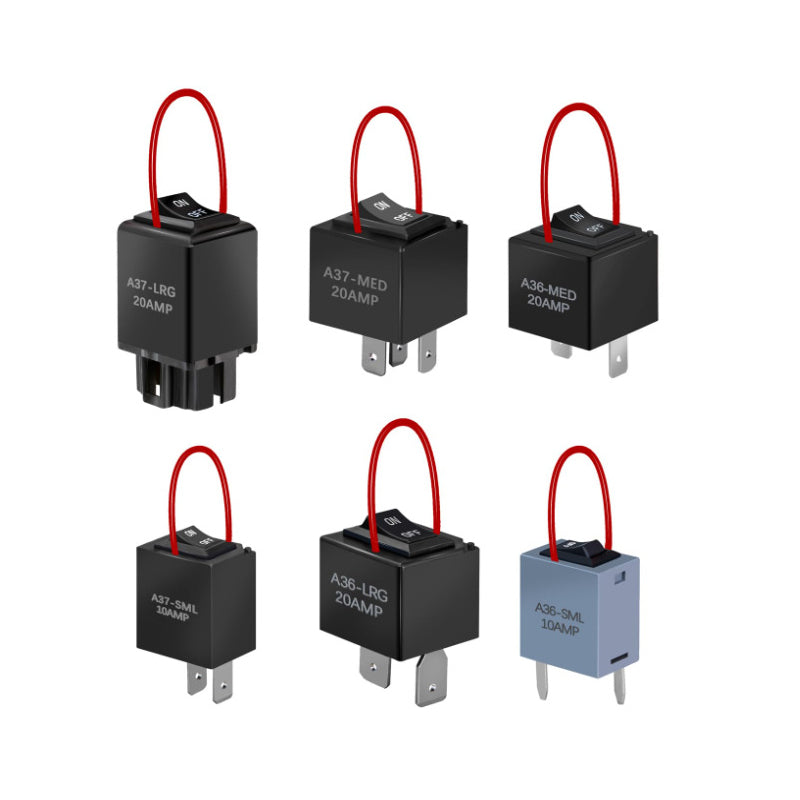

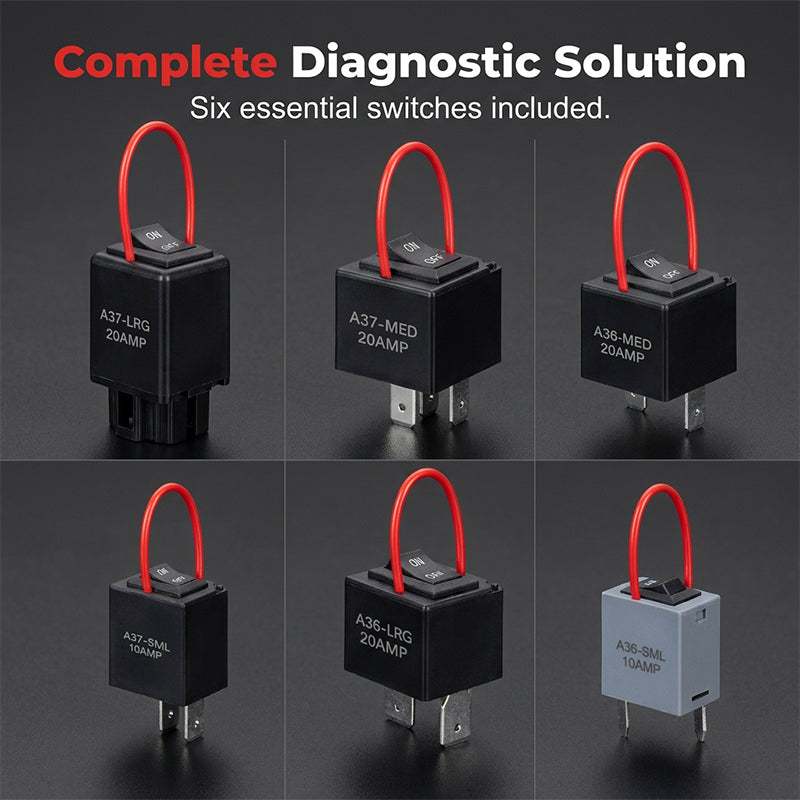

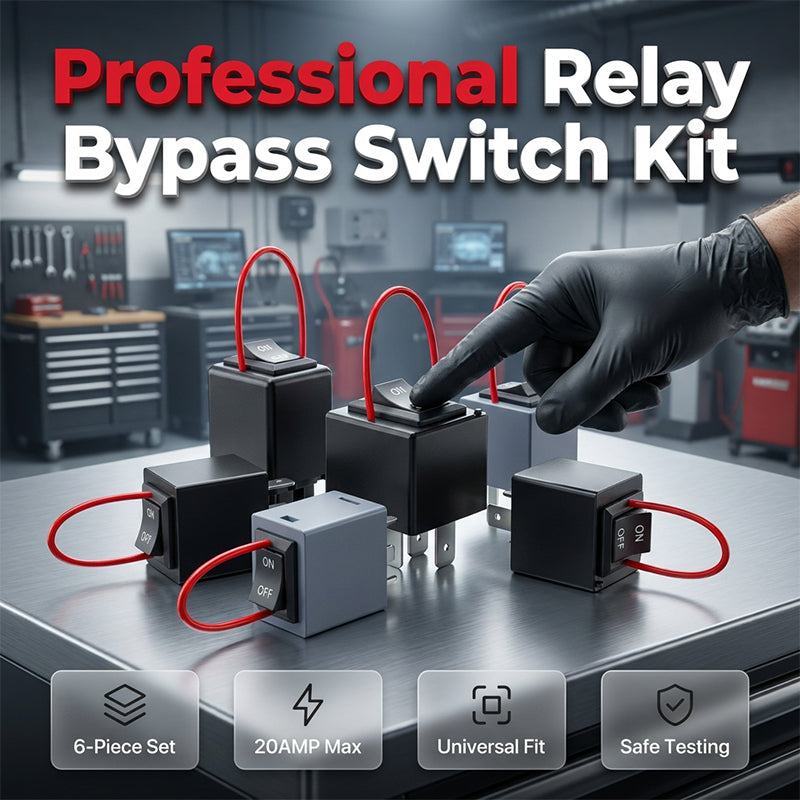

6 x Relay Bypass Switches

NOTES

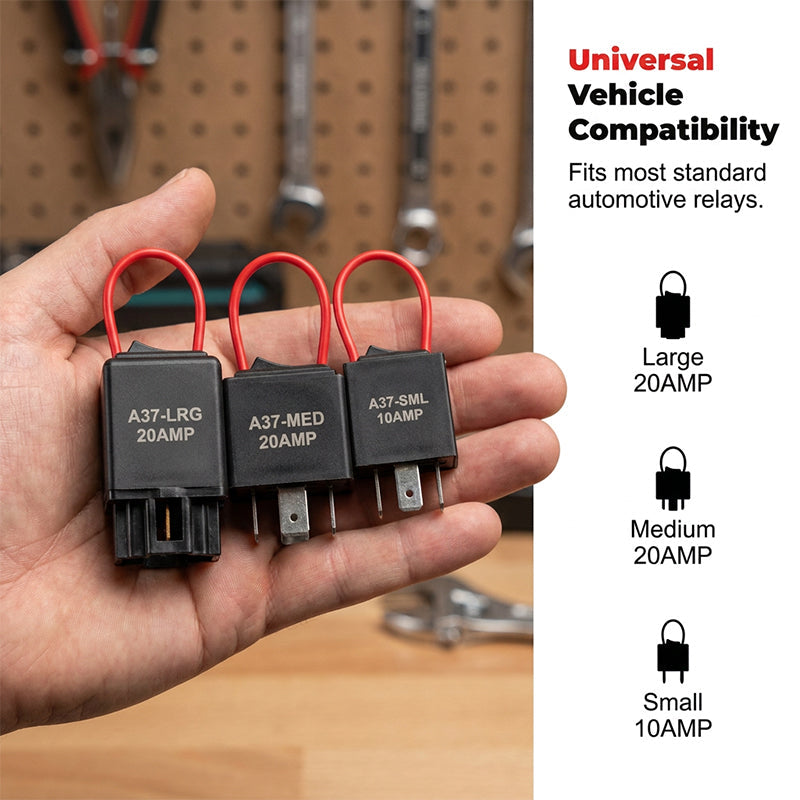

Please verify the relay type and size in your vehicle's fuse box before purchasing to ensure compatibility.

Do not leave the bypass switch installed permanently. It is intended for diagnostic and testing purposes only.

Ensure the vehicle's ignition is off before installing or removing the bypass switch to prevent electrical damage.
